Festo
574471

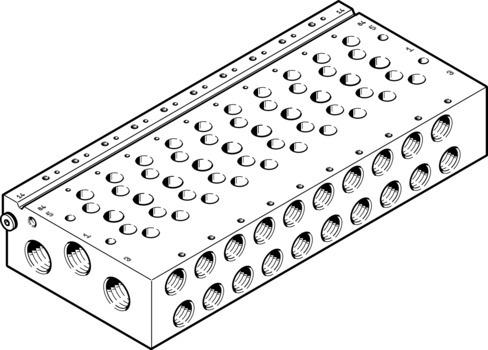

Manifold rail VABM-L1-18W-G38-6
Manufactured from a wrought aluminum alloy with a 19 mm width and a product weight of 995 g, this Festo industrial component supports up to 16 valve positions within an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar). It features G3/8 pneumatic connections 1, 3, and 5, G1/4 pneumatic connections 2 and 4, M5 pilot air ports 12/14, and M5 pilot exhaust air ports 82/84, along with specified maximum tightening torques of 1.5 Nm for DIN rail mounting, 1.18 Nm for valve mounting, and 3 Nm for wall mounting. The unit holds RCM compliance and c UL us recognition (OL) certifications, exhibits a corrosion resistance class (CRC) of 2 for moderate corrosion stress, complies with VDMA24364-B1/B2-L LABS (PWIS) conformity, and incorporates RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for part number 574471.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574471
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574471.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 19 mm
- Max. no. of valve positions
- 16
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for DIN rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 1.18 Nm
- Max. tightening torque for wall mounting
- 3 Nm
- Product weight
- 995 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G3/8
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
