Festo
574472

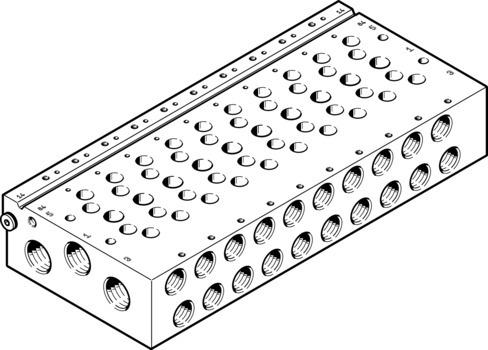

Manifold rail VABM-L1-18W-G38-7
The Festo 574472 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 19 mm and a product weight of 1127 g, supporting a maximum of 16 valve positions. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and includes pneumatic connections G3/8 for ports 1, 3, and 5, G1/4 for ports 2 and 4, and M5 ports for pilot air 12/14 and pilot exhaust 82/84. Certified with the RCM compliance mark and c UL us recognition (OL), this RoHS-compliant unit exhibits a CRC of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Maximum tightening torques are specified at 1.5 Nm for DIN rail mounting, 1.18 Nm for valve mounting, and 3 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574472
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574472.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 19 mm
- Max. no. of valve positions
- 16
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for DIN rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 1.18 Nm
- Max. tightening torque for wall mounting
- 3 Nm
- Product weight
- 1127 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G3/8
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
