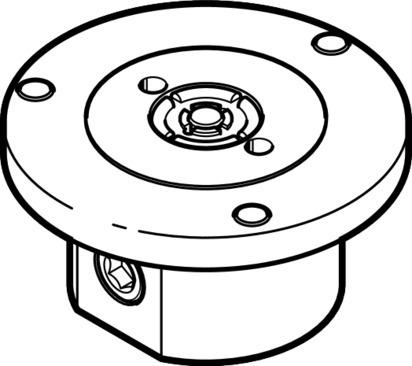

Name: Festo 574564 Bernoulli gripper OGGB-60-G18-2-Q
Brand: Festo

Bernoulli gripper OGGB-60-G18-2-Q

This Festo industrial component, part number 574564, features a 60 mm pneumatic gripper diameter and operates within a pressure range of 0 bar to 6 bar at a nominal operating pressure of 1 bar. The unit consumes 110 l/min of compressed air at nominal operating pressure using ISO 8573-1:2010 [7:4:4] medium, providing a holding force of 7 N and a lateral force of 15 N with internal thread mounting and G1/8 pneumatic connections. Designed for an ambient and medium temperature range of 0 °C to 60 °C, it exhibits a corrosion resistance class of 2 and generates a noise level of 65 dB(A) without oil lubrication capability. Request a quote today by submitting the exact part number, quantity, and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574564
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574564.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Connection position: Top/side
Pneumatic gripper diameter: 60 mm
Operating pressure: 0 bar...6 bar
Nominal operating pressure: 1 bar
Air consumption at nominal operating pressure: 110 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364-B2-L
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Temperature of medium: 0 °C...60 °C
Ambient temperature: 0 °C...60 °C
Noise level at nominal operating pressure: 65 dB(A)
Sound power level at nominal operating pressure: 78 dB(A)
Holding force at nominal operating pressure: 7 N
Lateral force at nominal operating pressure: 15 N
Type of mounting: With internal thread
Pneumatic connection: G1/8
Alternative connections: G1/8
Note on materials: RoHS compliant
Housing material: Wrought aluminum alloy | Anodized
Spacer element material: NBR | POM
Product weight: 119 g
