574566

Name: Festo 574566 Bernoulli gripper OGGB-100-G18-2-Q
Brand: Festo

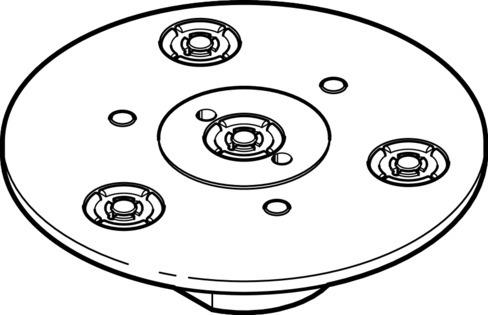

Bernoulli gripper OGGB-100-G18-2-Q

The Festo part number 574566 is an industrial component featuring a 100 mm pneumatic gripper diameter and internal thread mounting with any mounting position. Operating on compressed air as per ISO 8573-1:2010 [7:4:4] within a 0 bar to 6 bar pressure range, this unit delivers an air consumption of 110 l/min and a holding force of 6 N at a nominal operating pressure of 1 bar. The component supports top or side G1/8 pneumatic connections, exhibits a moderate corrosion resistance class of CRC 2, and operates across a medium and ambient temperature range of 0 °C to 60 °C without oil lubrication. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574566
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574566.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Connection position: Top/side
Pneumatic gripper diameter: 100 mm
Operating pressure: 0 bar...6 bar
Nominal operating pressure: 1 bar
Air consumption at nominal operating pressure: 110 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364-B2-L
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Temperature of medium: 0 °C...60 °C
Ambient temperature: 0 °C...60 °C
Noise level at nominal operating pressure: 65 dB(A)
Sound power level at nominal operating pressure: 78 dB(A)
Holding force at nominal operating pressure: 6 N
Lateral force at nominal operating pressure: 12 N
Type of mounting: With internal thread
Pneumatic connection: G1/8
Alternative connections: G1/8
Note on materials: RoHS compliant
Housing material: Wrought aluminum alloy | Anodized
Spacer element material: NBR | POM
Product weight: 210 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 574566. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
