Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

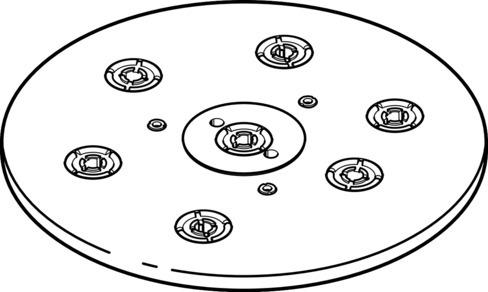

Reference imageConfirm configuration by manufacturer part number.
Festo
574567
Bernoulli gripper OGGB-140-G18-2
The Festo part number 574567 is an industrial component featuring a 140 mm pneumatic gripper diameter and an operating pressure range of 0 bar to 6 bar with a nominal operating pressure of 1 bar. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] consuming 110 l/min at nominal operating pressure, while prohibiting oil lubrication. The unit includes a G1/8 pneumatic connection, internal thread mounting, and delivers a holding force of 7 N and lateral force of 1 N at nominal operating pressure. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574567
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574567.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Connection position
- Top/side
- Pneumatic gripper diameter
- 140 mm
- Operating pressure
- 0 bar...6 bar
- Nominal operating pressure
- 1 bar
- Air consumption at nominal operating pressure
- 110 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Noise level at nominal operating pressure
- 65 dB(A)
- Sound power level at nominal operating pressure
- 78 dB(A)
- Holding force at nominal operating pressure
- 7 N
- Lateral force at nominal operating pressure
- 1 N
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Alternative connections
- G1/8
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy | Anodized
- Spacer element material
- POM
- Product weight
- 348 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574567. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
