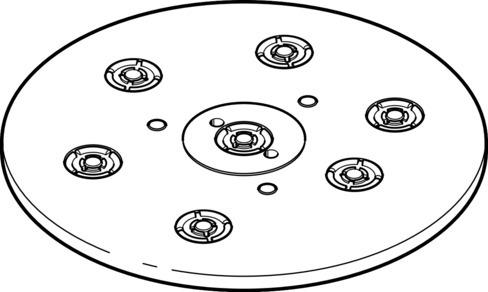

Reference imageConfirm configuration by manufacturer part number.
Festo
574568
Bernoulli gripper OGGB-140-G18-2-Q
This Festo industrial component, part number 574568, features a 140 mm pneumatic gripper diameter and operates within a pressure range of 0 bar to 6 bar at a nominal operating pressure of 1 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4]. At nominal operating pressure, it delivers an air consumption of 110 l/min, a holding force of 6 N, a lateral force of 12 N, a noise level of 65 dB(A), and a sound power level of 78 dB(A) with G1/8 pneumatic connections and top or side connection positions. The unit includes any mounting position with internal thread, VDMA24364-B2-L LABS conformity, CRC 2 moderate corrosion resistance, RoHS compliant materials, and an operating and medium temperature range of 0 °C to 60 °C without oil lubrication capability. Submit part number 574568, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574568
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574568.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Connection position
- Top/side
- Pneumatic gripper diameter
- 140 mm
- Operating pressure
- 0 bar...6 bar
- Nominal operating pressure
- 1 bar
- Air consumption at nominal operating pressure
- 110 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Noise level at nominal operating pressure
- 65 dB(A)
- Sound power level at nominal operating pressure
- 78 dB(A)
- Holding force at nominal operating pressure
- 6 N
- Lateral force at nominal operating pressure
- 12 N
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Alternative connections
- G1/8
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy | Anodized
- Spacer element material
- NBR | POM
- Product weight
- 348 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574568. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
