Festo
574586

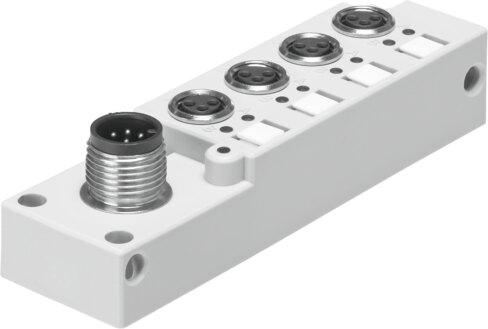

Multi-pin plug distributor NEDU-L4R1-M8G3L-M12G8
The Festo part number 574586 is an industrial component featuring dimensions of 24 mm in width, 23 mm in height, and 87 mm in length, with a product weight of 58 g in a gray reinforced PBT housing. It operates within a DC voltage range of 10 V to 30 V, providing a current rating of 3 A at 40° C and an acceptable current load of 2 A per slot through a straight M8 3-pin socket and a straight M12x1 8-pin plug. Designed with IP68 protection, FPM seals, and CRC 3 high corrosion stress resistance, the unit functions across an ambient temperature range of -20 °C to 80 °C while incorporating green and yellow LED status indicators, any mounting position, VDMA24364 Zone III LABS conformity, and RoHS compliance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574586
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574586.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 24 mm
- Height
- 23 mm
- Length
- 87 mm
- Ready status indication
- Green LED
- Status indicator
- Yellow LED
- Mounting position
- Any
- Product weight
- 58 g
- Electrical connection 1
- Straight socket, M8, 3-pin
- Electrical connection 2
- Straight plug, M12x1, 8-pin
- DC operating voltage range
- 10 V...30 V
- Current rating at 40° C
- 3 A
- Acceptable current load per slot
- 2 A
- Degree of protection
- IP68
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- Housing material
- PBT-reinforced
- Housing colour
- Gray
- Seals material
- FPM
- Material of pin contacts
- Nickel-plated and gold-plated
- Socket material
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574586. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
