Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
574587

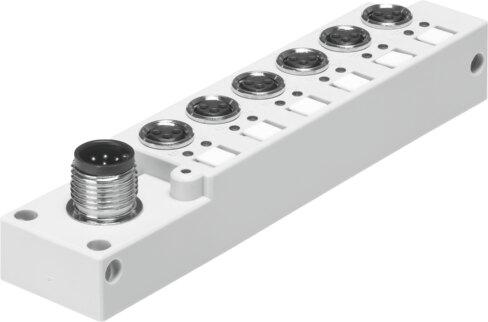

Multi-pin plug distributor NEDU-L6R1-M8G3L-M12G8
The Festo part number 574587 is a 74 g industrial component measuring 24 mm in width, 23 mm in height, and 113 mm in length, featuring a reinforced PBT gray housing with FPM seals and an IP68 degree of protection. Operating on a 10 V to 30 V DC range with a 3 A current rating at 40° C and a 2 A load limit per slot, this device incorporates an M8 3-pin straight socket, an M12x1 8-pin straight plug, green LED ready status indication, and a yellow status indicator for any mounting position within a -20 °C to 80 °C ambient temperature range. Complying with VDMA24364 Zone III LABS conformity, RoHS material notes, and CRC 3 high corrosion stress resistance, it provides reliable connectivity under demanding conditions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574587
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574587.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 24 mm
- Height
- 23 mm
- Length
- 113 mm
- Ready status indication
- Green LED
- Status indicator
- Yellow LED
- Mounting position
- Any
- Product weight
- 74 g
- Electrical connection 1
- Straight socket, M8, 3-pin
- Electrical connection 2
- Straight plug, M12x1, 8-pin
- DC operating voltage range
- 10 V...30 V
- Current rating at 40° C
- 3 A
- Acceptable current load per slot
- 2 A
- Degree of protection
- IP68
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- Housing material
- PBT-reinforced
- Housing colour
- Gray
- Seals material
- FPM
- Material of pin contacts
- Nickel-plated and gold-plated
- Socket material
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574587. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
