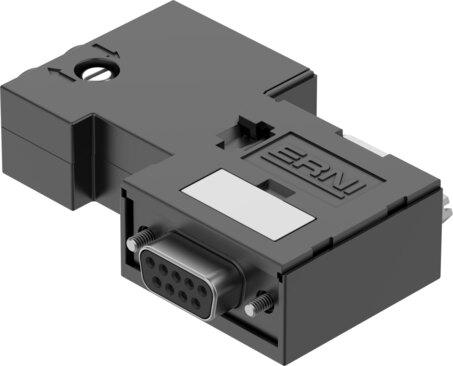

Name: Festo 574588 Plug NECU-S1W9-C2-ACO
Brand: Festo

Plug NECU-S1W9-C2-ACO

The Festo 574588 industrial component features a 9-pin Sub-D plug socket fieldbus interface and an electrical connection via a shieldable screw terminal supporting a 1 Mbit/s baud rate. Built with a reinforced polycarbonate housing, this 59 g unit utilizes 4-40 UNC-2B mounting and maintains an IP20 degree of protection within an ambient temperature range of -20 °C to 70 °C. The RoHS-compliant assembly accommodates cable diameters of 8 mm, connection cross-sections from 0.14 mm² to 0.5 mm², and features a corrosion resistance class of 1 alongside VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574588
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574588.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: 4-40 UNC-2B
Product weight: 59 g
Fieldbus interface: Sub-D, 9-pin, plug socket
Electrical connection 1: Socket, Sub-D, 9-pin
Electrical connection 2: Screw terminal, can be shielded
Baud rate: 1 Mbit/s
Approved cable diameter: 8 mm | 8 mm
Connection cross section: 0.14 mm²...0.5 mm²
Degree of protection: IP20
Ambient temperature: -20 °C...70 °C
Relative air humidity: 75% at 25 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 1 - Low corrosion stress
Housing material: Reinforced PC
