Festo
574589

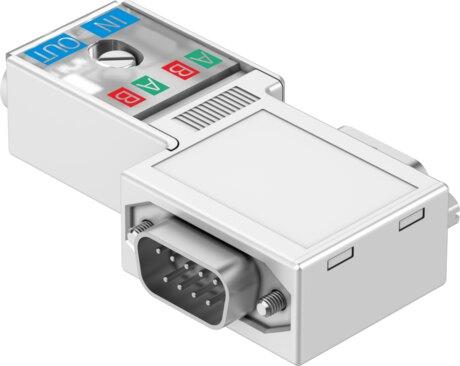

Plug NECU-S1W9-C2-APB
The Festo 574589 is a 43 g industrial component featuring a metalized plastic housing with dimensions of 40 mm in width, 72 mm in height, and 17 mm in length. It includes a 9-pin Sub-D plug fieldbus interface, an IDC terminal for electrical connection 2, a 12 Mbit/s baud rate, 4-40 UNC-2B mounting, and an IP20 degree of protection rated for ambient temperatures between -25 °C and 60 °C. The RoHS-compliant unit accommodates an 8 mm approved cable diameter, a 0.64 mm² connection cross section, and exhibits VDMA24364-B2-L LABS conformity with a CRC 1 corrosion resistance class. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574589
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574589.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 40 mm
- Height
- 72 mm
- Length
- 17 mm
- Type of mounting
- 4-40 UNC-2B
- Product weight
- 43 g
- Fieldbus interface
- Sub-D, 9-pin, plug
- Electrical connection 1
- 9-pin Sub-D plug
- Electrical connection 2
- IDC terminal
- Baud rate
- 12 Mbit/s
- Approved cable diameter
- 8 mm | 8 mm
- Connection cross section
- 0.64 mm²
- Degree of protection
- IP20
- Ambient temperature
- -25 °C...60 °C
- Storage temperature
- -25 °C...80 °C
- Relative air humidity
- 75% at 25 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- Metalized plastic
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574589. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
