Festo
574593

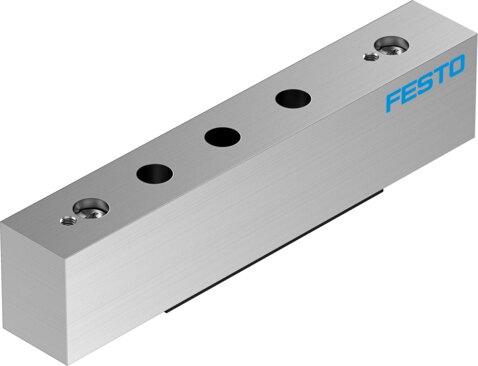

Vertical pressure supply plate VABF-L1-P3A3-G18
The Festo 574593 is an industrial component featuring a wrought aluminum alloy plate with a width dimension of 16 mm, a product weight of 350 g, and a maximum of 1 valve position. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and incorporates a G1/8 pneumatic connection 1 alongside a maximum tightening torque for valve mounting of 0.65 Nm. Certified with the RCM compliance mark and c UL us recognition (OL), this RoHS-compliant part exhibits a corrosion resistance class (CRC) of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574593
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574593.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Max. no. of valve positions
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.65 Nm
- Product weight
- 350 g
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Plate material
- Wrought aluminum alloy
