Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

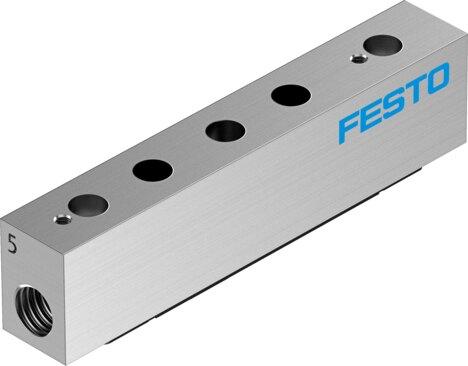

Reference imageConfirm configuration by manufacturer part number.
Festo
574594
Vertical pressure exhaust plate VABF-L1-P7A13-M7
The Festo part number 574594 is an industrial component featuring a wrought aluminum alloy plate construction with a width dimension of 10.5 mm, a product weight of 220 g, and a maximum number of valve positions of 1. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and includes M7 pneumatic connections 3 and 5, with a maximum tightening torque for valve mounting of 0.45 Nm. Rated for a corrosion resistance class (CRC) of 2 for moderate corrosion stress, this RoHS compliant unit features VDMA24364-B1/B2-L LABS conformity and carries both RCM compliance and c UL us - recognized (OL) certifications. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574594
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574594.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.5 mm
- Max. no. of valve positions
- 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.45 Nm
- Product weight
- 220 g
- Pneumatic connection 3
- M7
- Pneumatic connection 5
- M7
- Note on materials
- RoHS compliant
- Plate material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574594. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
