574595

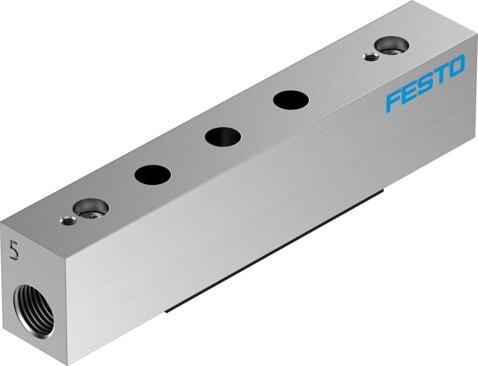

Name: Festo 574595 Vertical pressure exhaust plate VABF-L1-P7A13-G18
Brand: Festo

Vertical pressure exhaust plate VABF-L1-P7A13-G18

The Festo 574595 is an industrial component featuring a width dimension of 16 mm, a plate material of wrought aluminum alloy, and a product weight of 350 g, engineered with a maximum number of 1 valve position and an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar). This unit incorporates pneumatic connections 3 and 5 utilizing G1/8 ports, a maximum tightening torque for valve mounting of 0.65 Nm, a corrosion resistance class (CRC) of 2 for moderate corrosion stress, and LABS conformity under VDMA24364-B1/B2-L. Certified with the RCM compliance mark and recognized by c UL us (OL) with RoHS-compliant materials, this part meets rigorous technical criteria. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574595
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574595.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 16 mm
Max. no. of valve positions: 1
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Certication: RCM compliance mark | c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Max. tightening torque for valve mounting: 0.65 Nm
Product weight: 350 g
Pneumatic connection 3: G1/8
Pneumatic connection 5: G1/8
Note on materials: RoHS compliant
Plate material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 574595. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
