Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
5750

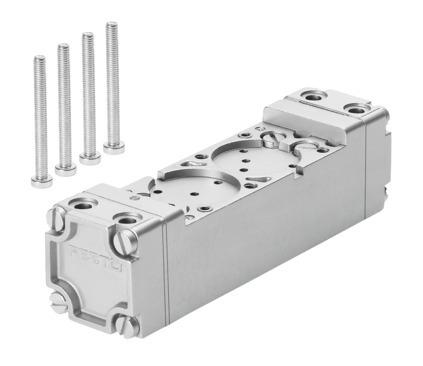

Basic valve C-5/2-1/4
The Festo part number 5750 is an industrial component designed for compressed air operating medium as per ISO 8573-1:2010 [7:4:4] with a normal nominal flow rate of 1400 l/min and an operating pressure range of 1 bar to 10 bar. Featuring a nominal width of 6.5 mm and sub-base mounting capability for any mounting position, this unit accommodates a pilot pressure of 2 bar to 10 bar through G1/8 pilot ports 12 and 14, alongside G1/4 pneumatic connections 1, 2, 3, and 4. It achieves a maximum switching frequency of 40 Hz with an on switching time of 24 ms and a switching time off of 28 ms, operating within a medium temperature range of -10 °C to 60 °C and featuring non-detenting manual override. Operation with oil lubrication is possible and required for further use, and the component maintains VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5750
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5750.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Operating pressure
- 1 bar...10 bar
- Nominal width
- 6.5 mm
- Mounting position
- Any
- Manual override
- Non-detenting
- Pilot pressure
- 2 bar...10 bar
- Max. switching frequency
- 40 Hz
- Switching time off
- 28 ms
- On switching time
- 24 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...60 °C
- Type of mounting
- On sub-base
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G1/4
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Diaphragm material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5750. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
