Festo
575203

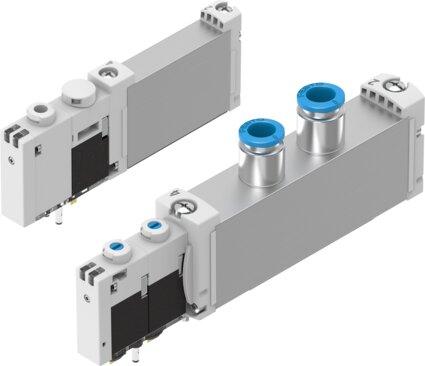

Air solenoid valve VUVG-...T1
The Festo industrial component, part number 575203, is an electrically actuated piston gate valve featuring multiple configurable valve functions including 2x3/2, 3/2-way, and 5-way options with a 10 mm, 14 mm, or 18 mm valve size. This unit operates on 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and delivers a normal nominal flow rate from 130 l/min to 1200 l/min. It incorporates a soft sealing principle, adjustable exhaust air function, mechanical or pneumatic spring reset, and external pilot air supply with degrees of protection up to IP67 and c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575203
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575203.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 10 mm | 14 mm | 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 130 l/min...1200 l/min
- Pneumatic working port
- Flange | M5 | M7 | G1/8 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP40 | IP65 | IP67
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap | Indeterminate overlap
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575203. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
