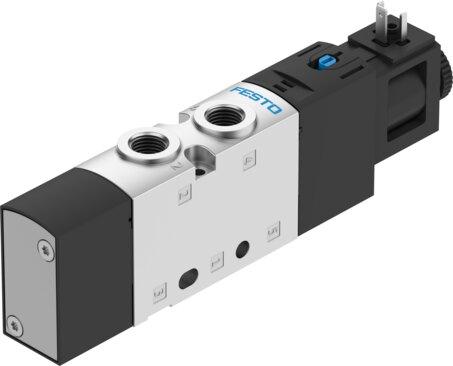

Reference imageConfirm configuration by manufacturer part number.
Festo
575263
Air solenoid valve VUVS-L20-M52-AD-G18-F7-1C1
The Festo 575263 is an electrical 5/2-way monostable industrial component featuring a 21 mm valve size, piston gate valve structural design, and soft sealing principle. This piloted valve operates on 24V DC with an operating pressure ranging from 0.25 MPa to 1 MPa (2.5 bar to 10 bar) and delivers a normal nominal flow rate of 700 l/min through G1/8 pneumatic working ports. Featuring IP65 degree of protection with a plug socket per IEC 60529, an adjustable exhaust air function, and both detenting and non-detenting manual override, the unit utilizes internal pilot air supply and a pneumatic spring reset method in any mounting position, backed by c UL us - recognized (OL) certification. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575263
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575263.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 5.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.35
- C value
- 2.9 l/sbar
- Switching time off
- 29 ms
- On switching time
- 20 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse on 1 signal
- 2700 µs
- Coil characteristics
- 24 V DC: 2.6 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575263. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
