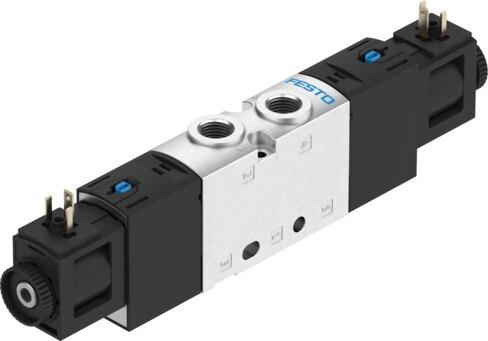

Name: Festo 575266 Air solenoid valve VUVS-L20-P53E-MD-G18-F7-1C1
Brand: Festo

Air solenoid valve VUVS-L20-P53E-MD-G18-F7-1C1

The Festo part number 575266 is a 21 mm electrical piston gate valve featuring a 5/3 exhausted valve function, a normal nominal flow rate of 600 l/min, and G1/8 pneumatic working ports. Operating at 24V DC within a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this piloted component utilizes a soft sealing principle, a mechanical spring reset method, internal pilot air supply, and an adjustable exhaust air function with positive overlap lap. It offers an IP65 degree of protection with a plug socket according to IEC 60529, detenting and non-detenting manual override, any mounting position, and c UL us (OL) recognition. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 575266
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 575266.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3 exhausted
Actuation type: Electrical
Valve size: 21 mm
Normal nominal ow rate (normalized to DIN 1343): 600 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure: 0.25 MPa...1 MPa | 2.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 4.5 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
b-value: 0.35
C value: 2.5 l/sbar
Switching time oﬀ: 44 ms
On switching time: 13 ms
Changeover time: 24 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1900 µs
Max. negative test pulse on 1 signal: 2700 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 575266. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
