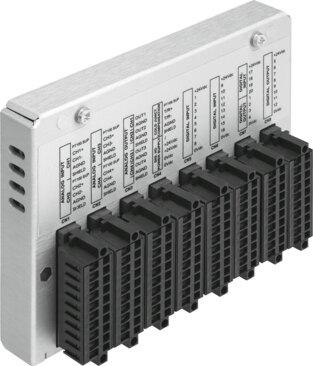

Reference imageConfirm configuration by manufacturer part number.
Festo
575300
Input/output module CDPX-EA-V1
The Festo 575300 is an industrial component weighing 230 g with dimensions of 34 mm installation depth, 89 mm height, and 125 mm length. It features 20 digital inputs operating at 24 VDC, including 2 fast clock pulse inputs and 2 incremental encoder connections with selectable signal delays of 0.1 ms, 3 ms, 10 ms, and 20 ms. Certified with C-Tick and c UL us-Listed (OL) ratings, the unit complies with EU and UK directives for EMC and RoHS, and meets VDMA24364 Zone III LABS conformity with an IP20 degree of protection. Operating within an ambient temperature range of 0 °C to 50 °C and storage temperatures from -20 °C to 70 °C, this RoHS-compliant device functions in non-condensing relative air humidity between 5% and 85%. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575300
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575300.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Installation depth
- 34 mm
- Height
- 89 mm
- Length
- 125 mm
- Certication
- C-Tick | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 85% | Non-condensating
- Degree of protection
- IP20
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 230 g
- Note on materials
- RoHS compliant
- Digital inputs, number
- 20
- Digital inputs, fast clock pulse inputs
- 2
- Digital inputs, incremental encoder connection
- 2
- Digital inputs, input signal delay
- 0.1 ms | 3 ms | 10 ms | 20 ms
- Digital inputs, input voltage/current
- 24 VDC
- Digital inputs, nominal value for TRUE
- 12 - 30 VDC
- Digital inputs, nominal value for FALSE
- 0 V
- Digital inputs, electrical isolation
- Yes
- Number of analog inputs
- 4
- Analog inputs, resolution
- 12 bit
- Analog inputs, signal range
- 0 - 10 V | 0 - 20 mA | 8 single-ended/4 differential | PT 100
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575300. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
