Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

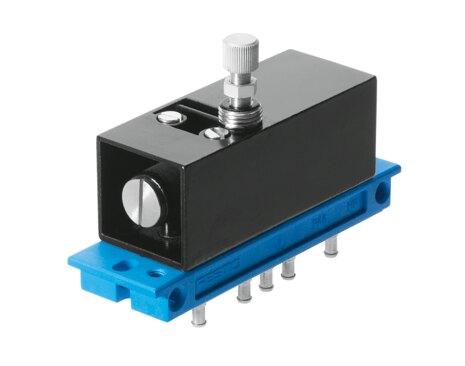

Reference imageConfirm configuration by manufacturer part number.
Festo
5754
Pneumatic timer VZO-3-PK-3
The Festo part number 5754 is a pneumatic industrial component featuring a structural design of a poppet valve with spring return, a 2 mm nominal width, and negative overlap lap. Constructed with a die-cast zinc housing and PK-3 pneumatic connections, it operates within a pressure range of 2.5 bar to 8 bar, delivering a normal nominal flow rate of 60 l/min using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit provides an adjustable delay time from 0.25 s to 5 s with a repetition accuracy of ± 0.5 s, a 50 ms pause period for reset, and requires a switching frequency of at least once a week for forced dynamization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5754
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5754.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Actuation type
- Pneumatic
- Structural design
- Poppet valve with spring return
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Operating pressure
- 2.5 bar...8 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 60 l/min
- Adjustable delay time
- 0.25 s...5 s
- Pause period for reset
- 50 ms
- Repetition accuracy of time setting
- ± 0.5 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 150 g
- Type of mounting
- Alternatively: | Front panel mounting | On mounting frame
- Pneumatic connection
- PK-3
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5754. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
