Name: Festo 575465 Valve manifold MPAC-VI
Brand: Festo

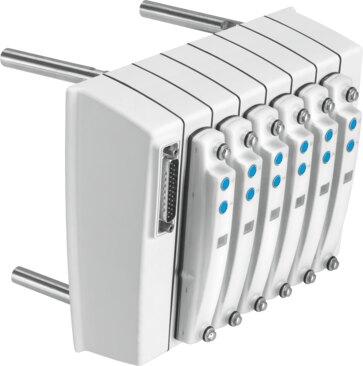

Valve manifold MPAC-VI

The Festo part number 575465 is a valve terminal type 35 featuring a width dimension of 26.8 mm and versatile electrical actuation via I-Port, IO-Link, or multi-pin. It operates within a temperature range of -5 °C to 50 °C for compressed air media conforming to ISO 8573-1:2010 [7:4:4] and provides a corrosion resistance class of 4 alongside IP65, IP67, and IP69K degrees of protection. This component supports operating pressures from -0.09 MPa to 0.8 MPa and complies with EU and UKCA directives for EMC and RoHS. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 575465
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 575465.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: I-Port | IO-Link® | Multi-pin
Electrical I/O system: No
Valve terminal type: 35
Width dimension: 26.8 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...60 °C
Storage temperature: -20 °C...40 °C
Degree of protection: IP65 | IP67 | IP69K
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Operating pressure: -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Operating pressure for valve manifold with internal pilot air supply: 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
LABS (PWIS) conformity: VDMA24364-B2-L
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | UL - Recognized (OL)
For use in the food industry: See supplementary material information

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 575465. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
