Festo
575481

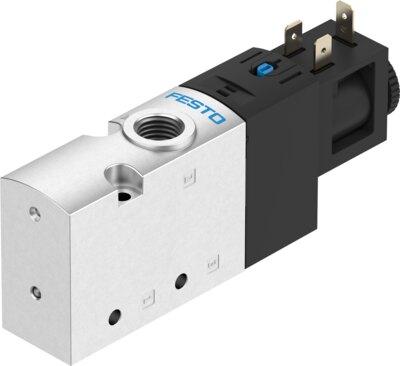

Air solenoid valve VUVS-L25-M32C-MD-G14-F8-1B2
The Festo part number 575481 is an electrical 3/2-way closed, monostable industrial component utilizing a piston gate valve structural design with a 26.5 mm valve size and 6.3 mm nominal width. This piloted component operates at 24V DC with an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), delivering a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports. Featuring a mechanical spring reset method, soft sealing principle, adjustable exhaust air function, internal pilot air supply, and IP65 degree of protection with a plug socket, it includes both detenting and non-detenting manual override capabilities and holds c UL us recognized (OL) certification alongside DNVGL-TAA000011J maritime classification for any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575481
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575481.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.3
- C value
- 4.8 l/sbar
- Switching time off
- 40 ms
- On switching time
- 11 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575481. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
