Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

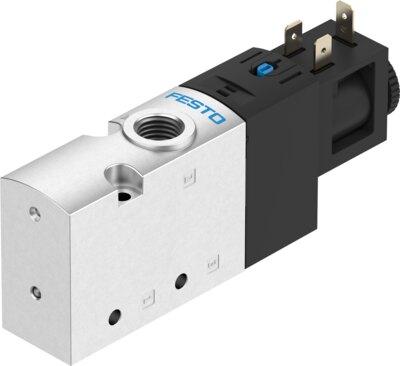

Reference imageConfirm configuration by manufacturer part number.
Festo
575496
Air solenoid valve VUVS-L25-M32U-MD-G14-F8-1B2
The Festo 575496 is an electrical 3/2-way monostable open industrial component featuring a 26.5 mm valve size, a piston gate valve structural design, and a soft sealing principle. It delivers a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports, operating at voltages of 24V DC and pressures ranging from 0.25 MPa to 1 MPa. Certified by c UL us and DNVGL-TAA000011J with an IP65 protection rating when using a plug socket, this unit includes internal pilot air supply, mechanical spring reset, and adjustable exhaust air function. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575496
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575496.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.3
- C value
- 4.3 l/sbar
- Switching time off
- 39 ms
- On switching time
- 11 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575496. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
