5755

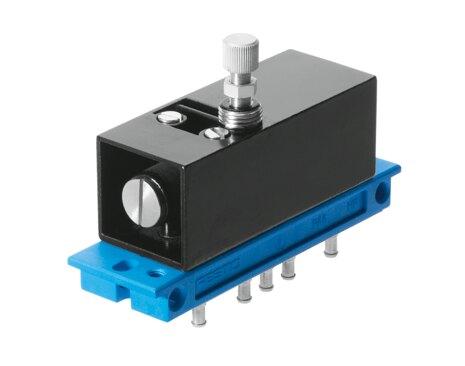

Name: Festo 5755 Pneumatic timer VZ-3-PK-3
Brand: Festo

Pneumatic timer VZ-3-PK-3

The Festo part number 5755 is a pneumatic industrial component featuring a 2 mm nominal width, a poppet valve structural design with spring return, and a negative overlap lap. It operates between 2.5 bar and 8 bar with a normal nominal flow rate of 90 l/min, an adjustable delay time of 0.25 s to 5 s, and a reset pause period of 55 ms using compressed air as per ISO 8573-1:2010 [7:4:4]. Housed in die-cast zinc with PK-3 pneumatic connections, this unit weighs 150 g and supports front panel mounting or mounting frame installation within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5755
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5755.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 2 mm
Actuation type: Pneumatic
Structural design: Poppet valve with spring return
Lap: Negative overlap
Note on forced dynamization: Switching frequency at least once a week
Operating pressure: 2.5 bar...8 bar
Normal nominal ow rate (normalized to DIN 1343): 90 l/min
Adjustable delay time: 0.25 s...5 s
Pause period for reset: 55 ms
Repetition accuracy of time setting: ± 0.5 s
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...60 °C
Product weight: 150 g
Type of mounting: Alternatively: | Front panel mounting | On mounting frame
Pneumatic connection: PK-3
Housing material: Die-cast zinc

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 5755. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
