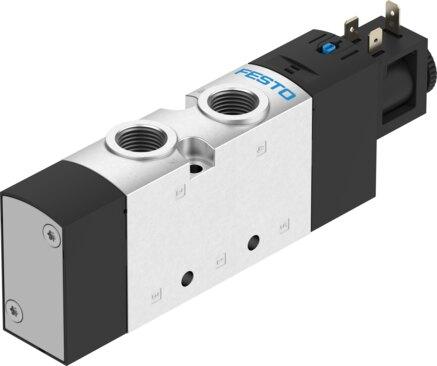

Reference imageConfirm configuration by manufacturer part number.
Festo
575506
Air solenoid valve VUVS-L25-M52-AZD-G14-F8-1B2
The Festo 575506 is a 26.5 mm electrical 5/2-way monostable industrial component featuring a piston gate valve structural design, soft sealing principle, and piloted type of control with an external pilot air supply port. This unit delivers a normal nominal flow rate of 1300 l/min through G1/4 pneumatic working ports, operates on 24V DC within an operating pressure range of -0.9 bar to 10 bar, and includes an adjustable exhaust air function, pneumatic spring reset method, and both detenting and non-detenting manual overrides. Certified by c UL us - recognized (OL) and DNVGL-TAA000011J for maritime classification, it provides an IP65 degree of protection when fitted with a plug socket according to IEC 60529 and allows mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575506
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575506.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.4
- C value
- 5.3 l/sbar
- Switching time off
- 35 ms
- On switching time
- 19 ms
