Festo
575510

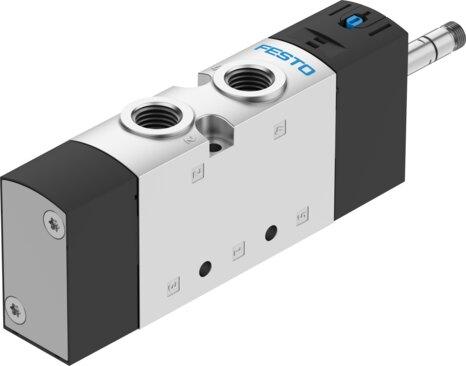

Air solenoid valve VUVS-L25-M52-MZD-G14-F8
The Festo 575510 is an electrical 5/2-way monostable industrial component featuring a 26.5 mm valve size, a piston gate valve structural design, and a soft sealing principle with positive overlap. This piloted unit delivers a normal nominal flow rate of 1300 l/min through G1/4 pneumatic working ports, operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and includes a mechanical spring reset, adjustable exhaust air function, and external pilot air supply. Certified by c UL us (OL) and holding maritime classification DNVGL-TAA000011J, the assembly supports any mounting position, reversible flow direction, and both detenting and non-detenting manual overrides. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575510
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575510.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Nominal width
- 6.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.4
- C value
- 5.3 l/sbar
- Switching time off
- 47 ms
- On switching time
- 12 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
