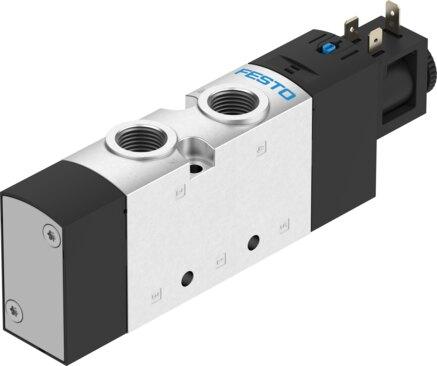

Reference imageConfirm configuration by manufacturer part number.
Festo
575513
Air solenoid valve VUVS-L25-M52-MD-G14-F8-1B2
The Festo 575513 is an electrical 5/2-way monostable industrial component featuring a 26.5 mm valve size, a piston gate valve structural design, and internal pilot air supply. It delivers a nominal flow rate of 1300 l/min through G1/4 pneumatic working ports at operating pressures from 0.25 MPa to 1 MPa, utilizing a mechanical spring reset and a soft sealing principle. This 24V DC unit includes an adjustable exhaust air function, detenting and non-detenting manual override, IP65 protection with a plug socket, c UL us recognition, and DNVGL-TAA000011J maritime classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575513
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575513.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.4
- C value
- 5.3 l/sbar
- Switching time off
- 47 ms
- On switching time
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
