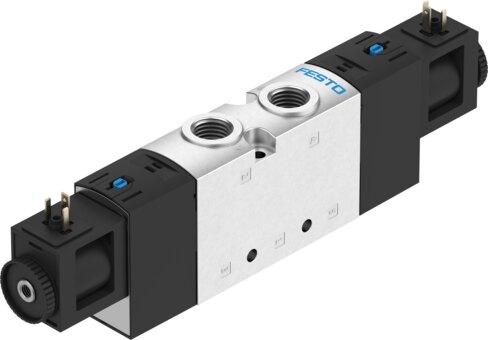

Reference imageConfirm configuration by manufacturer part number.
Festo
575539
Air solenoid valve VUVS-L25-P53E-MD-G14-F8-1C1
The Festo 575539 is an electrically actuated 5/3 exhausted piston gate valve featuring a 26.5 mm valve size, a 6.3 mm nominal width, and a normal nominal flow rate of 1000 l/min normalized to DIN 1343. Operating on 24V DC with an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this component utilizes a piloted control type with internal pilot air supply, a mechanical spring reset method, and a soft sealing principle with a positive overlap lap. It includes G1/4 pneumatic working ports, adjustable exhaust air function, detenting and non-detenting manual override, and offers IP65 degree of protection when used with a plug socket in any mounting position, backed by c UL us - recognized (OL) certification. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575539
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575539.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.4
- C value
- 4.3 l/sbar
- Switching time off
- 48 ms
- On switching time
- 14 ms
- Changeover time
- 25 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575539. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
