Festo
575541

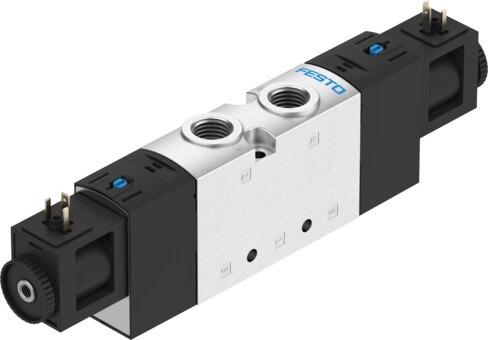

Air solenoid valve VUVS-L25-P53E-MD-G14-F8-1B2
The Festo 575541 is a 26.5 mm electrical piston gate valve featuring a 5/3 exhausted function, internal pilot air supply, and a normal nominal flow rate of 1000 l/min normalized to DIN 1343. Operating on 24V DC within a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this piloted component includes a G1/4 pneumatic working port, soft sealing principle, mechanical spring reset, and adjustable exhaust air function. It offers an IP65 degree of protection with a plug socket according to IEC 60529, detenting and non-detenting manual override, any mounting position, c UL us recognition, and DNVGL-TAA000011J maritime classification. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575541
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575541.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.4
- C value
- 4.3 l/sbar
- Switching time off
- 48 ms
- On switching time
- 14 ms
- Changeover time
- 25 ms
- Duty cycle
- 100%
