Festo
575599

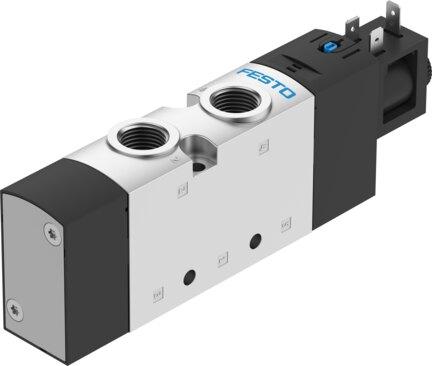

Air solenoid valve VUVS-L30-M52-AZD-G38-F8-1B2
The Festo part number 575599 is a 5/2-way monostable industrial component utilizing a piston gate valve structural design and piloted control with external pilot air supply. Operating at 24V DC with an operating pressure range of -0.09 MPa to 1 MPa and a normal nominal flow rate of 2300 l/min, this unit features a 31 mm valve size, G3/8 pneumatic working ports, and an IP65 degree of protection with a plug socket according to IEC 60529. Additional attributes include a pneumatic spring reset method, soft sealing principle, adjustable exhaust air function, detenting and non-detenting manual override, and certifications including c UL us recognized and DNVGL-TAA000011J maritime classification. Submit your exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575599
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575599.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 9.4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.4
- C value
- 9.9 l/sbar
- Switching time off
- 49 ms
- On switching time
- 24 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575599. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
