Festo
575604

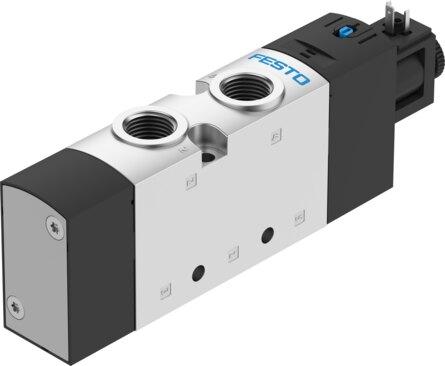

Air solenoid valve VUVS-L30-M52-MD-G38-F8-1C1
The Festo 575604 is an electrical 5/2-way monostable industrial component featuring a 31 mm valve size and a piston gate valve structural design with a soft sealing principle. This piloted valve operates on 24V DC within an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), delivering a normal nominal flow rate of 2300 l/min through G3/8 pneumatic working ports. It includes a mechanical spring reset method, internal pilot air supply, adjustable exhaust air function, positive overlap lap, and both detenting and non-detenting manual override capabilities while achieving an IP65 degree of protection with a plug socket in any mounting position according to IEC 60529 and c UL us recognition (OL). Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575604
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575604.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 9.4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.4
- C value
- 9.9 l/sbar
- Switching time off
- 62 ms
- On switching time
- 17 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Coil characteristics
- 24 V DC: 3.3 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575604. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
