Festo
575606

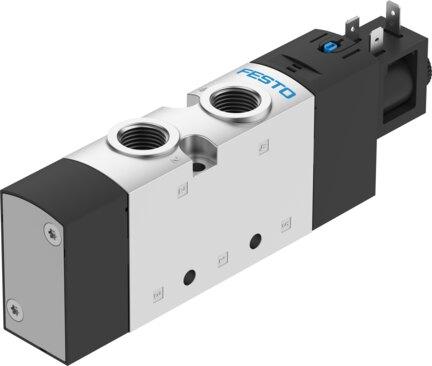

Air solenoid valve VUVS-L30-M52-MD-G38-F8-1B2
The Festo 575606 is a 5/2-way monostable industrial component featuring a 31 mm valve size, a piston gate valve structural design, and a soft sealing principle with a nominal width of 9.4 mm. Operated via 24V DC electrical actuation and piloted control with an internal pilot air supply port, this component delivers a normal nominal flow rate of 2300 l/min through G3/8 pneumatic working ports across an operating pressure range of 0.25 MPa to 1 MPa. It incorporates a mechanical spring reset method, adjustable exhaust air function, detenting and non-detenting manual override, and offers IP65 degree of protection when used with a plug socket in any mounting position. Certified by c UL us - recognized (OL) and DNVGL-TAA000011J for maritime classification, this unit meets rigorous operational standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575606
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575606.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 9.4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.4
- C value
- 9.9 l/sbar
- Switching time off
- 62 ms
- On switching time
- 17 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
