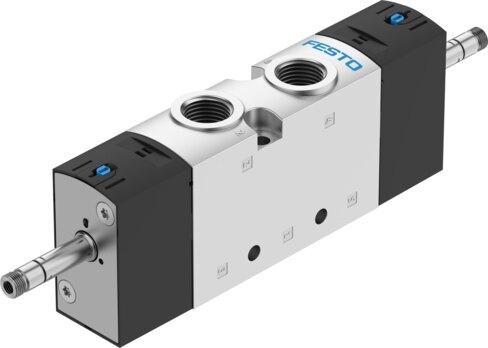

Reference imageConfirm configuration by manufacturer part number.
Festo
575610
Air solenoid valve VUVS-L30-B52-ZD-G38-F8
The Festo 575610 is a bistable 5/2-way industrial component featuring a 31 mm valve size, a piston gate valve structural design, and a soft sealing principle with positive overlap lap. It delivers a normal nominal flow rate of 2300 l/min through G3/8 pneumatic working ports, operating within a pressure range of -0.09 MPa to 1 MPa and utilizing an external pilot air supply port with pilot pressure from 0.15 MPa to 1 MPa. This c UL us-recognized unit includes an adjustable exhaust air function, detenting and non-detenting manual override, and DNVGL-TAA000011J maritime classification while supporting any mounting position and reversible flow direction. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575610
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575610.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- G3/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Nominal width
- 9.4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...1 MPa
- Pilot pressure
- 1.5 bar...10 bar
- b-value
- 0.4
- C value
- 9.9 l/sbar
- Changeover time
- 13 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575610. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
