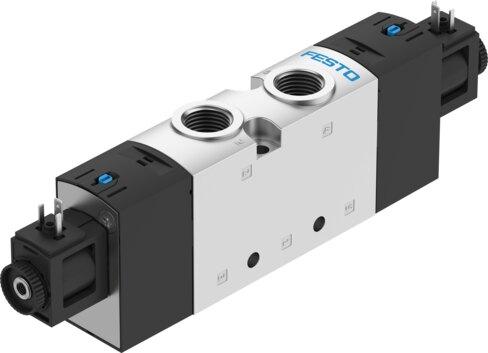

Reference imageConfirm configuration by manufacturer part number.
Festo
575626
Air solenoid valve VUVS-L30-P53U-MZD-G38-F8-1C1
The Festo part number 575626 is a 31 mm electrical 5/3-way pressurized piston gate valve featuring a soft sealing principle, positive overlap, and an 8.1 mm nominal width. It delivers a normal nominal flow rate of 1600 l/min through G3/8 pneumatic working ports across an operating pressure range of -0.09 MPa to 1 MPa, powered by a 24V DC operating voltage. Constructed with an IP65 degree of protection when used with a plug socket, this piloted component includes a mechanical spring reset, adjustable exhaust air function, external pilot air supply port, reversible flow direction, and both detenting and non-detenting manual override capabilities in any mounting position, backed by c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575626
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575626.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.4
- C value
- 6.6 l/sbar
- Switching time off
- 75 ms
- On switching time
- 18 ms
- Changeover time
- 31 ms
- Duty cycle
- 100%
