Festo
575630

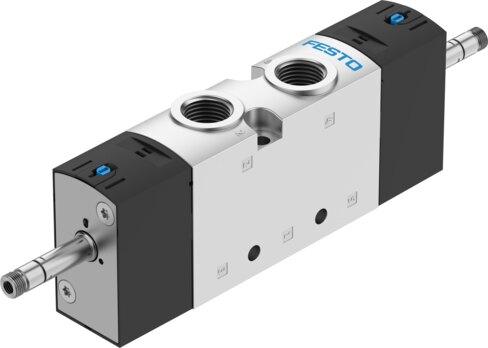

Air solenoid valve VUVS-L30-P53E-MD-G38-F8
The Festo 575630 is an electrically actuated 5/3 exhausted piston gate valve featuring a 31 mm valve size, a G3/8 pneumatic working port, and an internal pilot air supply port. This piloted component provides a normal nominal flow rate of 1600 l/min at an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), utilizing a soft sealing principle, mechanical spring reset, and an adjustable exhaust air function. It includes a nominal width of 8.1 mm, positive overlap lap, non-reversible flow direction, and both detenting and non-detenting manual override capabilities while supporting any mounting position. Certified by c UL us (OL) and holding maritime classification DNVGL-TAA000011J, this industrial component is available for procurement. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575630
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575630.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G3/8
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J
- Nominal width
- 8.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.4
- C value
- 7.1 l/sbar
- Switching time off
- 74 ms
- On switching time
- 20 ms
- Changeover time
- 36 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575630. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
