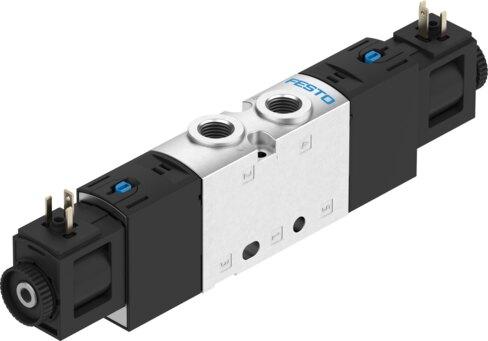

Reference imageConfirm configuration by manufacturer part number.
Festo
575686
Air solenoid valve VUVS-L20-P53C-MZD-G18-F7-1C1
The Festo 575686 is a 21 mm electrical 5/3-way closed piston gate valve featuring a soft sealing principle and positive overlap lap. This piloted component delivers a nominal flow rate of 700 l/min through G1/8 pneumatic working ports across an operating pressure range of -0.9 bar to 10 bar utilizing 24V DC operating voltage. Equipped with an adjustable exhaust air function, mechanical spring reset, and IP65 protection degree with plug socket, it supports any mounting position and external pilot air supply with detenting or non-detenting manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this c UL us recognized component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575686
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575686.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.35
- C value
- 2.9 l/sbar
- Switching time off
- 42 ms
- On switching time
- 13 ms
- Changeover time
- 24 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575686. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
