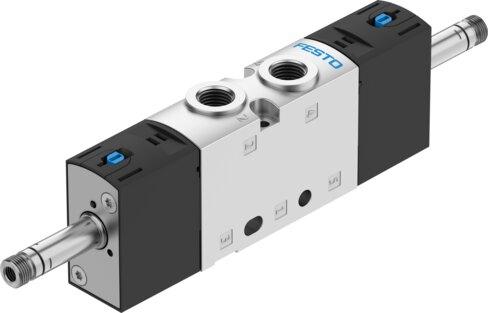

Reference imageConfirm configuration by manufacturer part number.
Festo
575691
Air solenoid valve VUVS-L20-P53E-MZD-G18-F7
The Festo 575691 is an electrically actuated 5/3 exhausted piston gate valve featuring a 21 mm valve size, a G1/8 pneumatic working port, and a nominal width of 4.5 mm with a normal nominal flow rate of 600 l/min normalized to DIN 1343. This component utilizes a soft sealing principle, mechanical spring reset, adjustable exhaust air function, positive overlap lap, and supports an operating pressure range from -0.09 MPa to 1 MPa alongside an external pilot air supply port operating at 0.25 MPa to 1 MPa. Certified as c UL us recognized (OL), it includes both detenting and non-detenting manual overrides, a reversible flow direction, piloted control, and allows mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575691
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575691.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Nominal width
- 4.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.35
- C value
- 2.5 l/sbar
- Switching time off
- 44 ms
- On switching time
- 13 ms
- Changeover time
- 24 ms
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse on 1 signal
- 2700 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
