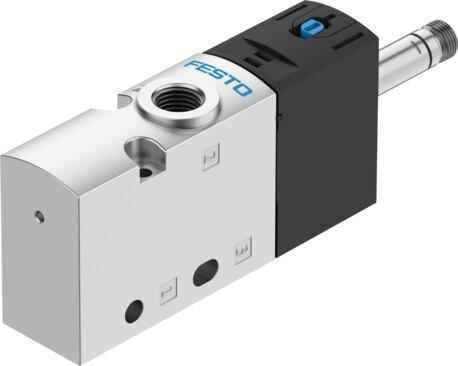

Reference imageConfirm configuration by manufacturer part number.
Festo
575698
Air solenoid valve VUVS-L20-M32U-AD-N18-F7
The Festo 575698 is a 3/2-way monostable open electrical industrial component featuring a 21 mm valve size, a piston gate valve structural design, and internal pilot air supply. It delivers a normal nominal flow rate of 700 l/min through 1/8 NPT pneumatic working ports across an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar). This c UL us-recognized (OL) unit utilizes a soft sealing principle, a pneumatic spring reset method, adjustable exhaust air function, and both detenting and non-detenting manual override capabilities with a nominal width of 5.7 mm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575698
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575698.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Pneumatic working port
- 1/8 NPT
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Nominal width
- 5.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.35
- C value
- 2.9 l/sbar
- Switching time off
- 21 ms
- On switching time
- 14 ms
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse on 1 signal
- 2700 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575698. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
