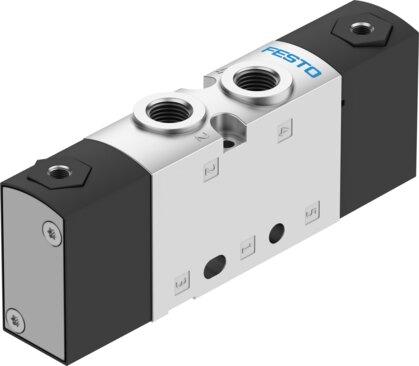

Reference imageConfirm configuration by manufacturer part number.
Festo
575713
Pneumatic valve VUWS-L20-P53E-M-N18
The Festo 575713 is a 21 mm pneumatic industrial component featuring a 5/3 exhausted piston gate valve design with a soft sealing principle and positive overlap. This directly controlled unit delivers a normal nominal flow rate of 600 l/min through 1/8 NPT pneumatic working ports, operating across a pressure range of -0.9 bar to 10 bar with internal pilot air supply. Certified as c UL us recognized (OL), it incorporates a mechanical spring reset method, adjustable exhaust air function, and a reversible flow direction with a 4.5 mm nominal width. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575713
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575713.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Pneumatic
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- 1/8 NPT
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Nominal width
- 4.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- Internal
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- Switching time off
- 46 ms
- On switching time
- 10 ms
- Changeover time
- 21 ms
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
