Festo
575719

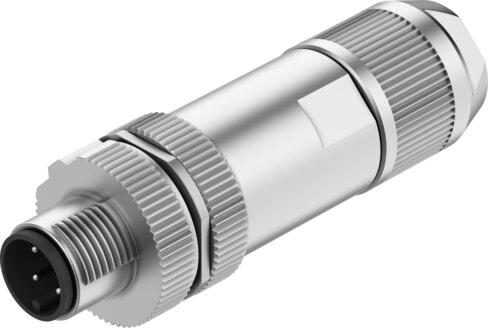

Plug NECU-M-S-A12G4-IS
This Festo industrial component, part number 575719, is a straight M12x1 plug featuring a 4-pin spring-loaded terminal with A-coding and a DC operating voltage range of 0 V to 30 V. Built with a nickel-plated die-cast zinc housing and gold-plated bronze pin contacts, the 38 g unit supports an approved cable diameter of 4 mm to 8 mm and a connection cross section from 0.14 mm² to 0.5 mm². It achieves IP65 and IP67 protection ratings, operates in ambient temperatures between -40 °C and 85 °C, and complies with EN 61076-2-101 and ATEX Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575719
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575719.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Product weight
- 38 g
- Electrical connection
- 4-pin | Spring-loaded terminal | M12x1 | Straight plug
- Plug coding
- A
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 4 A
- Approved cable diameter
- 4 mm...8 mm
- Connection cross section
- 0.14 mm²...0.5 mm²
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -40 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Housing material
- Die-cast zinc | Nickel-plated
- Material of pin contacts
- Bronze | Gold-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575719. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
