Festo
575898
Connecting cable NEBP-M16W6-K-2-M9W5
The Festo part number 575898 is an industrial component with accessories featuring a product-specific pin assignment and a product weight of 160 g, operating within a DC voltage range of 0 V to 30 V. Electrical connection 1 on the field device side utilizes a round, angled socket with M16x0.75 connection technology, 6 pins, 4 occupied wires, and a screw-type lock. Electrical connection 2 on the control side consists of a round, angled plug with M9x0.5 connection technology, 5 pins, 4 occupied wires, and a screw-type lock. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575898
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575898.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Additional functions
- Product-specic pin assignment
- Cable designation
- With accessories
- Product weight
- 160 g
- Electrical connection 1, function
- Field device side

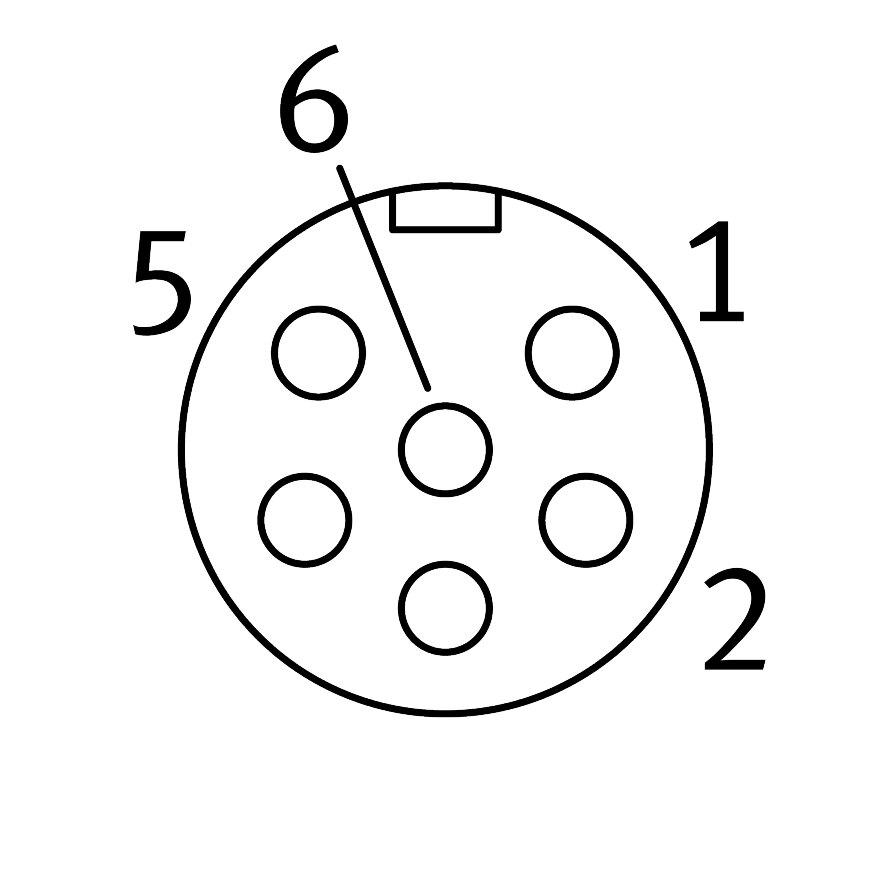

- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- M16x0.75
- Electrical connection 1, number of pins/wires
- 6
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- M9x0.5
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 3 A
- Note on acceptable current load at 40°C
- 2.3 A for 0.34 mm² | 3.6 A for 0.49 mm²
- Surge resistance
- 0.5 kV
- Shield
- Yes
- Cable length
- 2 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 5.5 mm
