Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

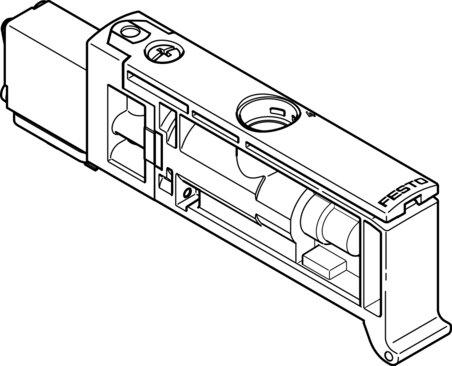

Reference imageConfirm configuration by manufacturer part number.
Festo
575998
Air solenoid valve VUVB-ST12-M32C-MZH-QX-D-1T1
The Festo 575998 is a 12 mm electrical industrial component featuring a 3/2-way closed, monostable poppet valve design with a spring return and soft sealing principle. It delivers a normalized nominal flow rate of 240 l/min to 400 l/min across QS-4 and QS-6 pneumatic working ports, operating within a pressure range of 0.2 MPa to 0.8 MPa and a nominal width of 4 mm. Equipped with an IP65 degree of protection, non-detenting manual override, and external pilot air supply, this piloted valve achieves a 14 ms off-switching time in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 575998
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 575998.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Valve size
- 12 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 240 l/min...400 l/min
- Pneumatic working port
- QS-4 | QS-6
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Structural design
- Poppet valve with spring return
- Degree of protection
- IP65
- Nominal width
- 4 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Information on operating pressure
- 0 – 0.8 bar with external pilot air | 0 - 8 bar with external pilot air
- Pilot pressure MPa
- 0.2 MPa...0.8 MPa
- Pilot pressure
- 2 bar...8 bar
- Switching time off
- 14 ms
- On switching time
- 6 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 800 µs
- Max. negative test pulse on 1 signal
- 300 µs
- Coil characteristics
- 24 V DC: 1.0 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 575998. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
