Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

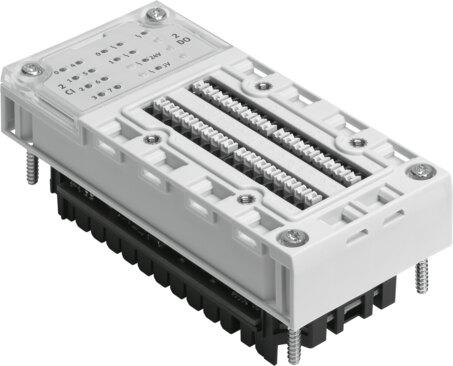

Reference imageConfirm configuration by manufacturer part number.
Festo
576046
Input/output module CPX-2ZE2DA
The Festo part number 576046 is a polymer industrial component measuring 50 mm in width, 107 mm in length, and 50 mm in height, with a product weight of 130 g. It operates on a DC operating voltage range of 18 V to 30 V with a nominal voltage of 24 V, featuring two outputs and extensive parameterization capabilities including pulse width modulation, frequency measurement, and position determination. Rated IP65 and IP67 with a CRC 1 corrosion resistance class, the unit functions within an ambient temperature range of -5 °C to 50 °C and includes LED indicators for channel status, module diagnostics, and group diagnostics. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576046
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576046.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
- Width dimension
- 50 mm
- Product weight
- 130 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- Max. cable length
- 30 m
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Certication
- UL - Recognized (OL)
- Note on materials
- RoHS compliant
- Housing material
- Polymer
- LED indicators
- 1 group diagnostics | 10 channel status | 2 module diagnostics | 2 channel diagnostics
- Diagnostics
- Operating-mode-dependent diagnostics
- No. of outputs
- 2
- Parameterization
- On/off delay | Frequency output | Speed measurement | Pulse output | Pulse train | Rotational speed measurement | Frequency measurement | Period duration measurement | Motor operating mode | Position determination | Pulse width modulation | One-off counting | Innite counting | Periodic counting
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576046. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
