Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

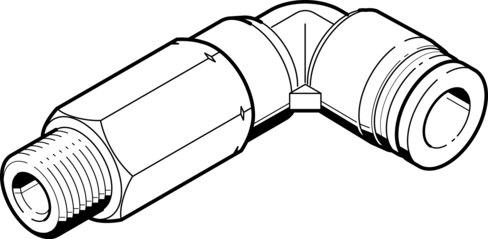

Reference imageConfirm configuration by manufacturer part number.
Festo
576052
Push-in L-fitting, long QBLL-1/4-5/16-U-M
The Festo part number 576052 is an L-shape, long industrial component featuring a standard size with a 0.236 in nominal width, an external thread R1/4 pneumatic connection 1, and a pneumatic connection 2 for 5/16" outside diameter tubing. Constructed with a PBT housing and a gray releasing ring, this RoHS-compliant unit utilizes a coated screwed plug seal, external hexagon SW14 mounting, and operates within a temperature range of 0 °C to 60 °C (32 °F to 140 °F) at pressures from 0.095 MPa to 1 MPa (0.95 bar to 10 bar, 13.775 psi to 145 psi). It supports compressed air as an operating medium per ISO 8573-1:2010 [7:-:-] with lubricated operation possible, carrying a CRC corrosion resistance class of 1 and VDMA24364 Zone III LABS conformity at a product weight of 1.4 oz per pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576052
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576052.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.236 in
- Type of seal on screwed plug
- Coating
- Design
- L-shape, long
- Pack size
- 10
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 1.4 oz
- Type of mounting
- External hexagon SW14
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/16"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576052. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
