576319

Name: Festo 576319 Terminal strip NECU-L3G7-C1
Brand: Festo

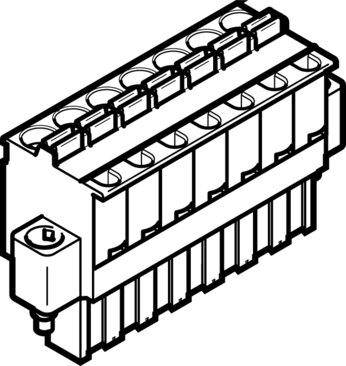

Terminal strip NECU-L3G7-C1

The Festo 576319 is an industrial component featuring a straight 7-pin electrical connection with a spring-loaded terminal supporting a connection cross section of 0.2 mm² to 2.5 mm². Housed in black polyamide with tin-plated copper alloy pin contacts, this part weighs 12.8 g, operates within a DC voltage range of 0 V to 30 V, and handles a current rating of 12 A at 40° C. It provides a surge resistance of 4 kV, a contamination level of 3, and a corrosion resistance class of CRC 2 for moderate corrosion stress, alongside VDMA24364-B2-L LABS conformity and RoHS compliance. Designed for any mounting position, the c UL us-listed assembly withstands ambient temperatures from -40 °C to 85 °C and a contact durability of 100 cycles. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 576319
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 576319.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c UL us - Listed (OL)
Contact durability: 100
Mounting position: Any
Product weight: 12.8 g
Electrical connection: 7-pin | Spring-loaded terminal | Straight plug
DC operating voltage range: 0 V...30 V
Current rating at 40° C: 12 A
Surge resistance: 4 kV
Connection cross section: 0.2 mm²...2.5 mm²
Ambient temperature: -40 °C...85 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Contamination level: 3
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Housing material: PA
Housing colour: Black
Material of pin contacts: Copper alloy | Tin-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 576319. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
