Festo
576378

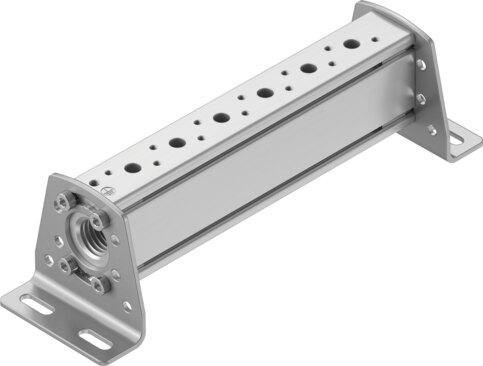

Common supply manifold VABM-B10-20-N38-5-P53
Engineered by Festo, part number 576378 is an industrial component featuring a wrought aluminum alloy manifold rail with a 22 mm width dimension and a product weight of 352 g. This assembly accommodates a maximum of 5 valve positions, includes 3/8 NPT pneumatic connection 1, and utilizes a mounting bracket for any mounting position. The unit provides a corrosion resistance class of CRC 2 for moderate corrosion stress, adheres to VDMA24364-B1/B2-L LABS conformity, and features RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576378
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576378.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 22 mm
- Mounting position
- Any
- Max. no. of valve positions
- 5
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 352 g
- Type of mounting
- With mounting bracket
- Pneumatic connection 1
- 3/8 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576378. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
