Festo
576380

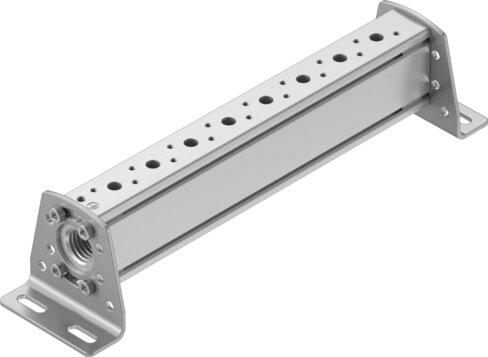

Common supply manifold VABM-B10-20-N38-7-P53
The Festo part number 576380 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 22 mm and a maximum of 7 valve positions. This unit has a product weight of 437 g, a corrosion resistance class of CRC 2 for moderate corrosion stress, and LABS conformity per VDMA24364-B1/B2-L with RoHS-compliant materials. It includes a 3/8 NPT pneumatic connection 1, supports any mounting position, and utilizes a mounting bracket for installation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576380
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576380.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 22 mm
- Mounting position
- Any
- Max. no. of valve positions
- 7
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 437 g
- Type of mounting
- With mounting bracket
- Pneumatic connection 1
- 3/8 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
