576489

Name: Festo 576489 Manifold block VABM-B10-20EEE-G38-2
Brand: Festo

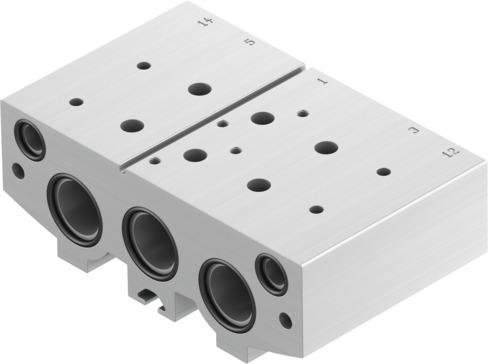

Manifold block VABM-B10-20EEE-G38-2

The Festo 576489 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 22 mm and a product weight of 492 g. This RoHS compliant part accommodates a maximum of 2 valve positions, incorporates through-hole mounting for any position, and offers a corrosion resistance class (CRC) of 2 alongside VDMA24364-B1/B2-L LABS conformity. Pneumatic connections 1, 3, and 5 utilize G3/8 ports, while pilot air ports 12 and 14 feature G1/8 connections. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 576489
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 576489.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 22 mm
Mounting position: Any
Max. no. of valve positions: 2
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 492 g
Type of mounting: With through-hole
Pilot air port 12: G1/8
Pilot air port 14: G1/8
Pneumatic connection 1: G3/8
Pneumatic connection 3: G3/8
Pneumatic connection 5: G3/8
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 576489. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
