Festo
576492

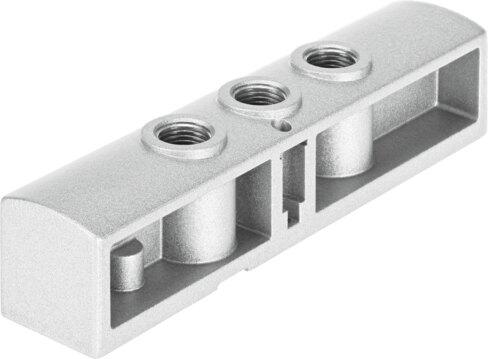

Supply plate VABF-B10-20-P1A4-G18
The Festo part number 576492 is an industrial component featuring a die-cast aluminum supply plate with G1/8 pneumatic connections for ports 1, 3, and 5. This 78 g unit operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and requires a maximum tightening torque of 1.4 Nm during installation with through-hole mounting. Built with RoHS compliant materials, it achieves a CRC corrosion resistance class of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576492
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576492.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 1.4 Nm
- Product weight
- 78 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 5
- G1/8
- Note on materials
- RoHS compliant
- Supply plate material
- Die-cast aluminum
