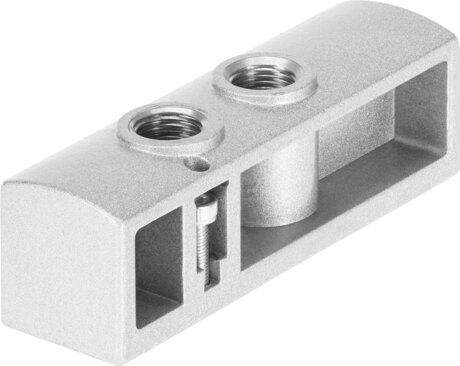

Reference imageConfirm configuration by manufacturer part number.
Festo
576493
Supply plate VABF-B10-20-P1A4-G18-P3
The Festo 576493 industrial component features a supply plate material of die-cast aluminum and weighs 56 g with through-hole mounting. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and utilizes G1/8 pneumatic connections for both connection 1 and connection 3, maintaining a maximum tightening torque of 1.4 Nm. This RoHS compliant part adheres to VDMA24364-B1/B2-L LABS conformity and offers a corrosion resistance class (CRC) of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576493
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576493.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 1.4 Nm
- Product weight
- 56 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 3
- G1/8
- Note on materials
- RoHS compliant
- Supply plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576493. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
