Festo
576563

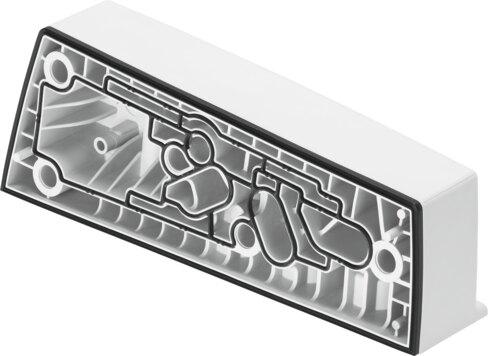

End plate VMPAC-EPR-IN
The Festo 576563 is an industrial component featuring a reinforced PA housing with a product weight of 224 g and RoHS compliant materials. It operates within a pressure range of -0.9 bar to 8 bar, requires a pilot pressure of 3 bar to 8 bar, and functions at ambient temperatures from -5 °C to 50 °C. This unit achieves a corrosion resistance class of CRC 4 for particularly high corrosion stress and VDMA24364-B2-L LABS conformity, with G1/8 venting hole connection alongside G3/8 pneumatic connections 3 and 5. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 576563
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 576563.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- -0.9 bar...8 bar
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 224 g
- Venting hole connection
- G1/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 576563. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
